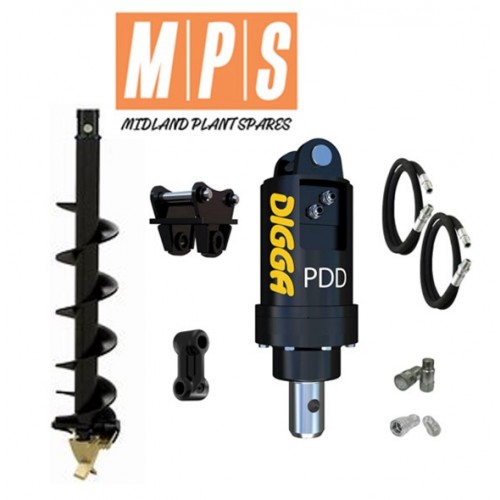

Digga PDD Auger Package

 To Suit 750kg - 1.5T Micro / Mini Digger

Whats Included ?

1 x Digga PDD Auger Drive Motor

Hydraulic Hoses

Hydraulic Fitting To Suit Host Machine

1 x Auger Flight - 200mm Tungsten Tipped

1 x Double Pin Head To Suit Machine

Compact high torque Digga manufactured gearbox Highly efficient design with less moving parts Fitted with Eaton/Digga geroler hydraulic motor No case drain required Full range of shafts available upon request Extreme duty shaft locking system Drive fits down the hole for greater digging depth Low maintenance with 5yr gear box and 3yr motor warranty   PDD PDX2 PDX3 REC FLOW RANGE 15-45 LPM 30-50 LPM 30-55 LPM MAX TORQUE 1171 NM 2307 NM 2831 NM PRESSURE VALVE FITTED OPTIONAL OPTIONAL OPTIONAL MAX PRESSURE DO NOT EXCEED 240 BAR @ 60 LPM MAX FLOW DO NOT EXCEED 95 LPM @ 160 BAR 115 LPM @ 130 BAR MAX POWER DO NOT EXCEED 25 KW (34 HP) OVERALL LENGTH 500 MM 557 MM 579 MM DIAMETER 187 MM 187 MM 187 MM WEIGHT NO FRAME / HITCH 41 KG 45 KG 45 KG STD OUTPUT SHAFT 65 MM ROUND 65 MM ROUND 65 MM ROUND SWING CONTROL N / A N / A N / A DIGGALIGN N / A N / A N / A REC AUGER A4 / RC4 A4 / RC4 A4 / RC4 MAX AUGER DIA CLAY/SHALE* 400 MM 450 MM 450 MM MAX AUGER DIA EARTH* 500 MM 600 MM 600 MM (*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.

If you decide you no longer want the goods for any reason you have a period of 30 working days (starting from the day after you receive them) to return them to us for a no-quibble refund (or exchange if preferred).

Please Note this does not apply to made to measure orders or one off items.

If you have any questions regarding this please feel free to contact us.

We cannot refund the cost of returning any goods to us unless the return is due to a faulty or damaged item, in which case we will reimburse you the postage cost.
