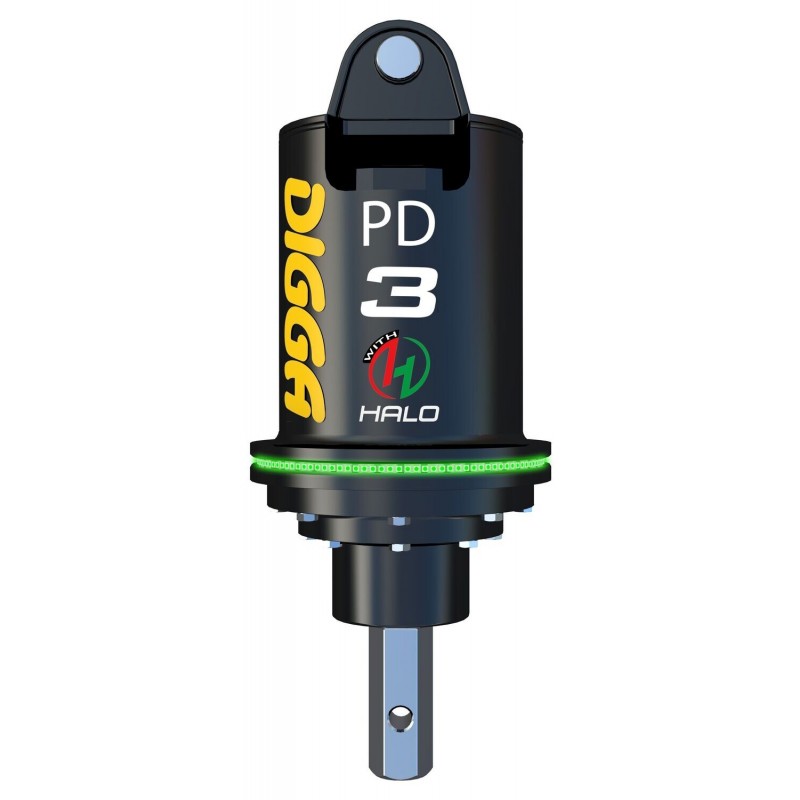

Digga PD3 Halo Auger Drive Unit
- Product Code: PD3 Halo
- In Stock. FREE Delivery on all UK orders over £100
- £1,790.00
- Inc VAT: £2,148.00
Features
- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with Eaton/Digga geroler hydraulic motor
- No case drain required
- Full range of shafts available upon request
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth
- Low maintenance with 5yr gear box and 3yr motor warranty
- HALO alignment system, located in the hood ring of the auger drive, which provides an operator with a simultaneous clear line of sight to itself, as well as the hole being dug. HALO utilises a band of LED lights, which when fully illuminated green, indicate the drive is plumb.
| PDX2 | PDX3 | PD3 | |
| REC FLOW RANGE | 30-50 LPM | 30-55 LPM | 45-75 LPM |
| MAX TORQUE | 2307 NM | 2831 NM | 3544 NM |
| PRESSURE VALVE FITTED | OPTIONAL | OPTIONAL | OPTIONAL |
| MAX PRESSURE DO NOT EXCEED | 240 BAR @ 60 LPM | ||
| MAX FLOW DO NOT EXCEED | 115 LPM @ 130 BAR | ||
| MAX POWER DO NOT EXCEED | 25 KW (34 HP) | ||
| OVERALL LENGTH | 557 MM | 579 MM | 579 MM |
| DIAMETER | 187 MM | 187 MM | 240 MM |
| WEIGHT NO FRAME / HITCH | 45 KG | 45 KG | 57 KG |
| STD OUTPUT SHAFT | 65 MM ROUND | 65 MM ROUND | 65 MM ROUND |
| SWING CONTROL | N / A | N / A | OPTIONAL |
| DIGGALIGN | N / A | N / A | OPTIONAL |
| REC AUGER | A4 / RC4 | A4 / RC4 | A4 / RC4 |
| MAX AUGER DIA CLAY/SHALE* | 450 MM | 450 MM | 600 MM |
| MAX AUGER DIA EARTH* | 600 MM | 600 MM | 750 MM |
